CNC Router
Routers

Q SERIES

Elite Series

Reliable production CNC for wood, plastics, and daily workshop work

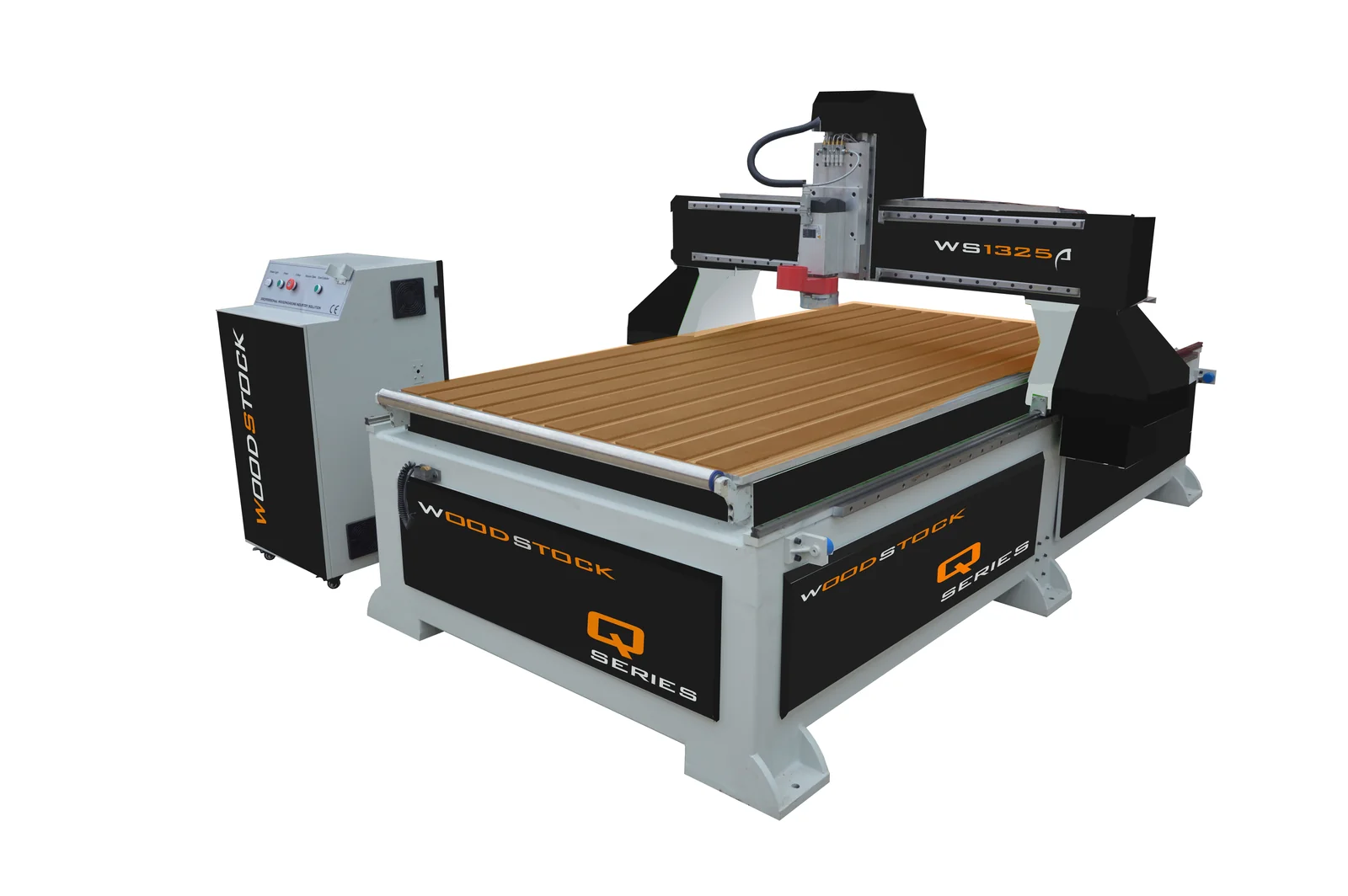

Q Series CNC Router Engineered for reliable, high-precision production, the Q Series is a proven CNC solution trusted by both established workshops and growing businesses. Built on a rigid welded steel frame and equipped with precision linear guide rails and a high-speed rack-and-pinion drive system, it delivers smooth motion, consistent accuracy, and dependable performance in daily operation. Already installed in multiple workshops with zero reported issues, this machine is designed to perform from day one — and continue delivering over time. Start with a robust base configuration and scale as your workflow grows, with optional ATC for increased efficiency and multi-tool capability. Reliable. Scalable. Built for serious work.

Ball-screw on all axes

Technical Specifications +
X,Y,Z Working Area
1300×2500×350mm
Table Size
1700×3050mm
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
X,Y,Z Repositioning Accuracy
±0.015 mm
Table Surface
PVC manual clamping
Frame
6mm Steel Tube Welded Structure
X,Y Structure
Rack and Pinion Drive, Hiwin/PMI Rails Linear Bearings
Z Structure
Hiwin/PMI Rails Linear Bearings and Ball Screw
Max. Power Consumption
12.5KW
Max. Rapid Travel Rate
33,000mm/min
Stepper
--
Max. Working Speed (Stepper motor)
25,000mm/min
Spindle Speed
0–24000 RPM
Spindle Power
3 kW
Drive Motors
Stepper System
Working Voltage
AC380V/50Hz/3PH
Command Language
G Code
Operating System
Base Model RichAuto
Computer Interface
USB
Collet
ER25
X,Y Resolution
< 0.01mm
Running Environment Temperature
-10°~60°
Relative Humidity
30%~75%
Packing Size
3200×2100×1980mm
N.W.
1450kg
G.W.
1670kg
✔ Built to order
✔ Direct factory pricing
✔ Support included

Customize Your Machine

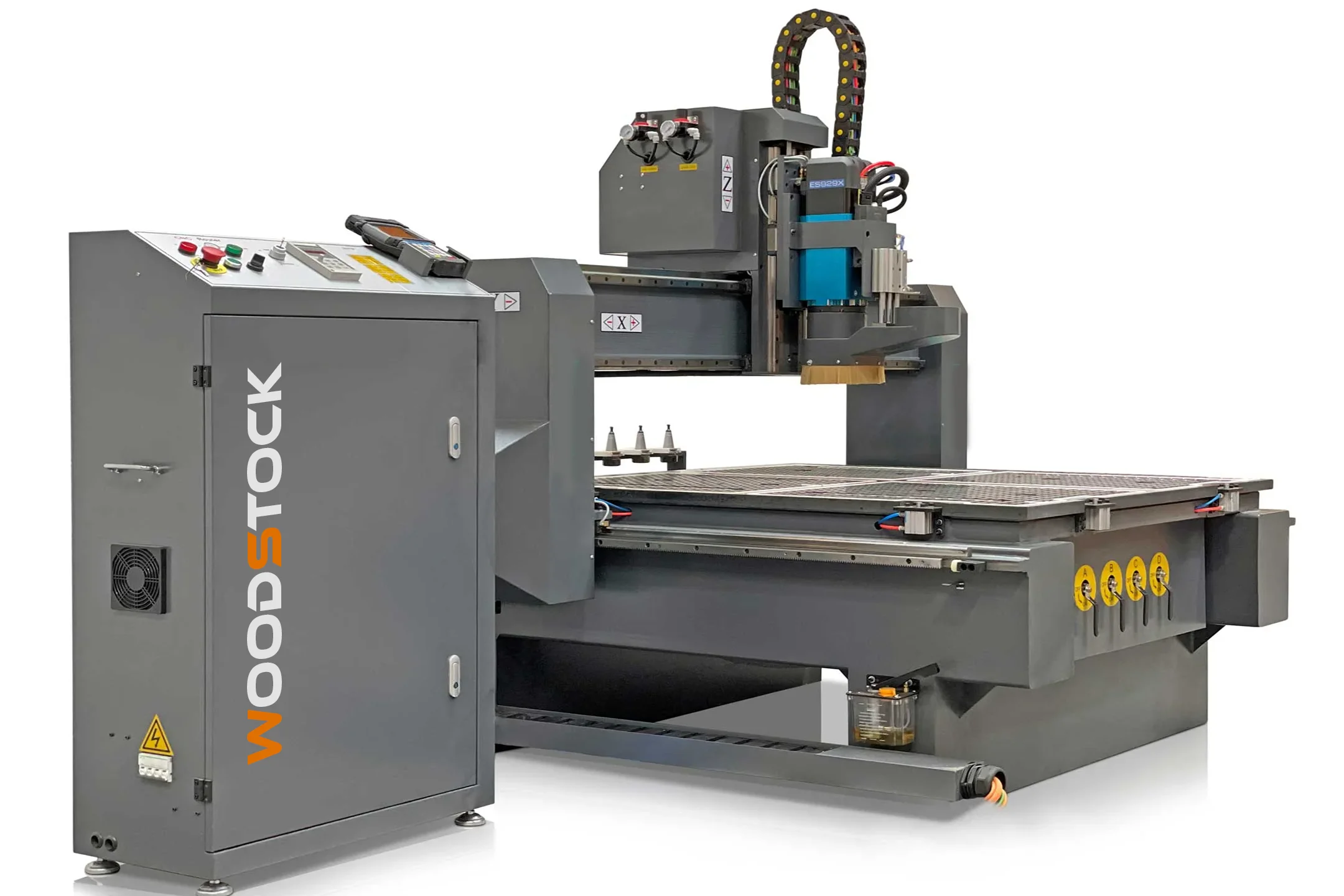

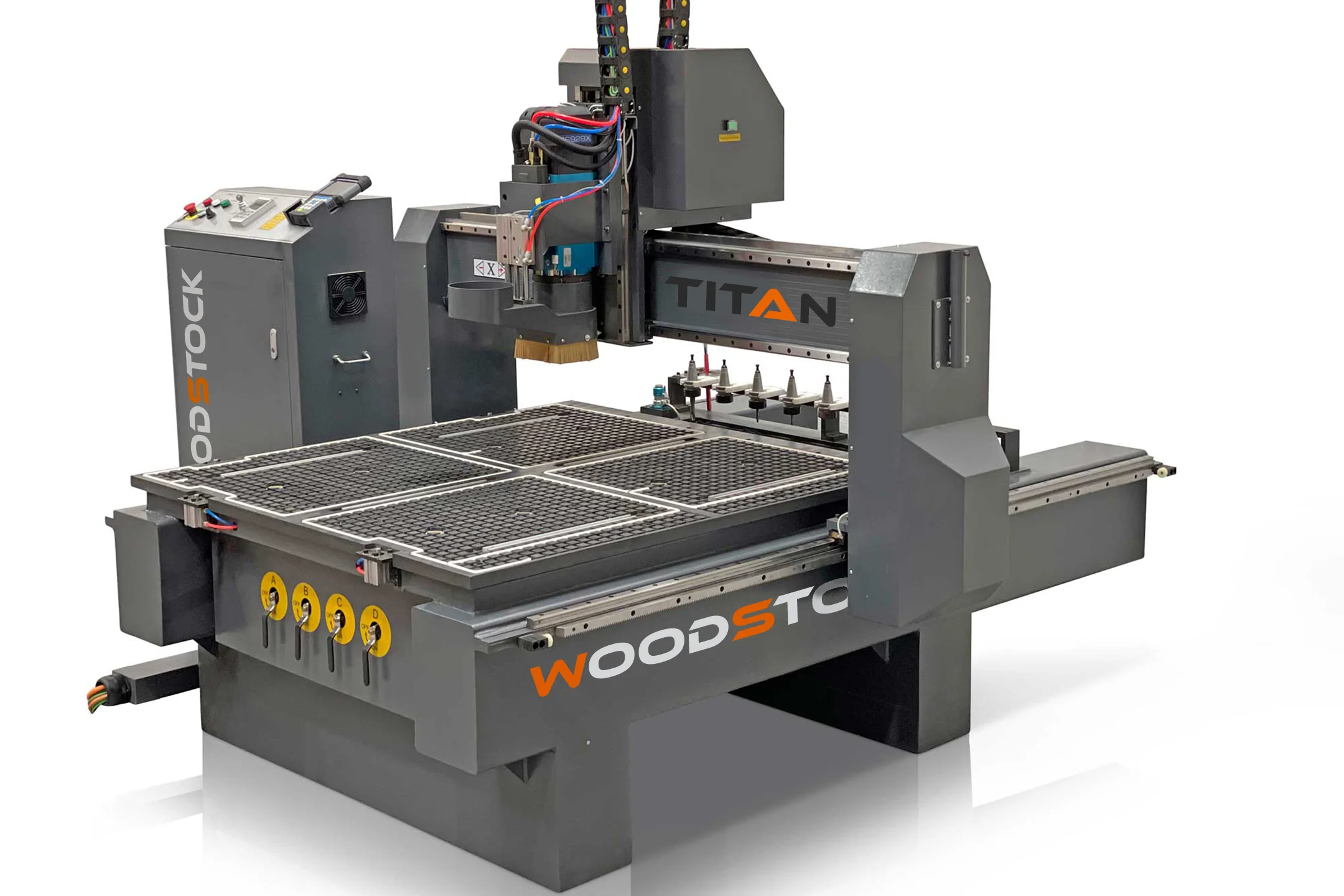

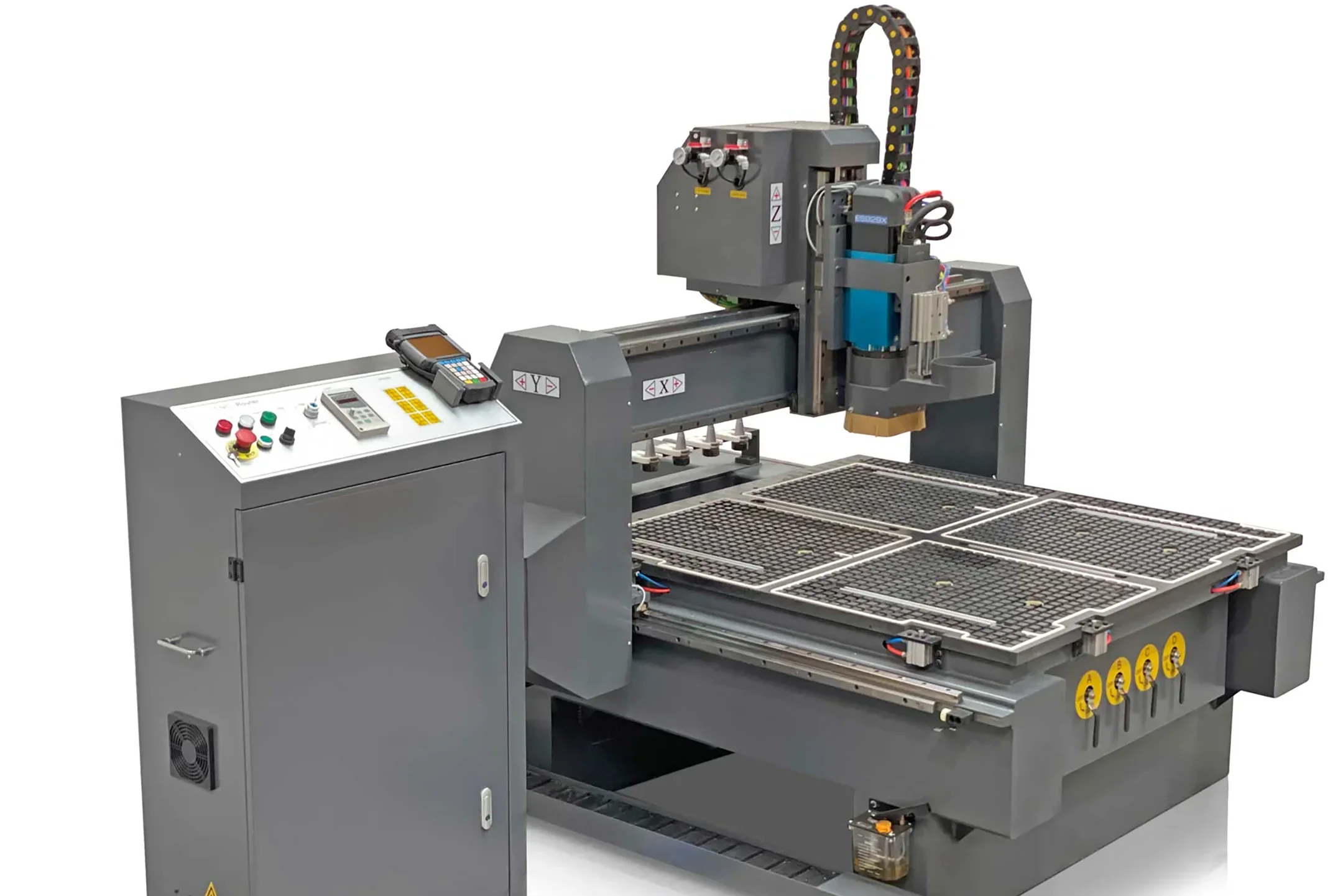

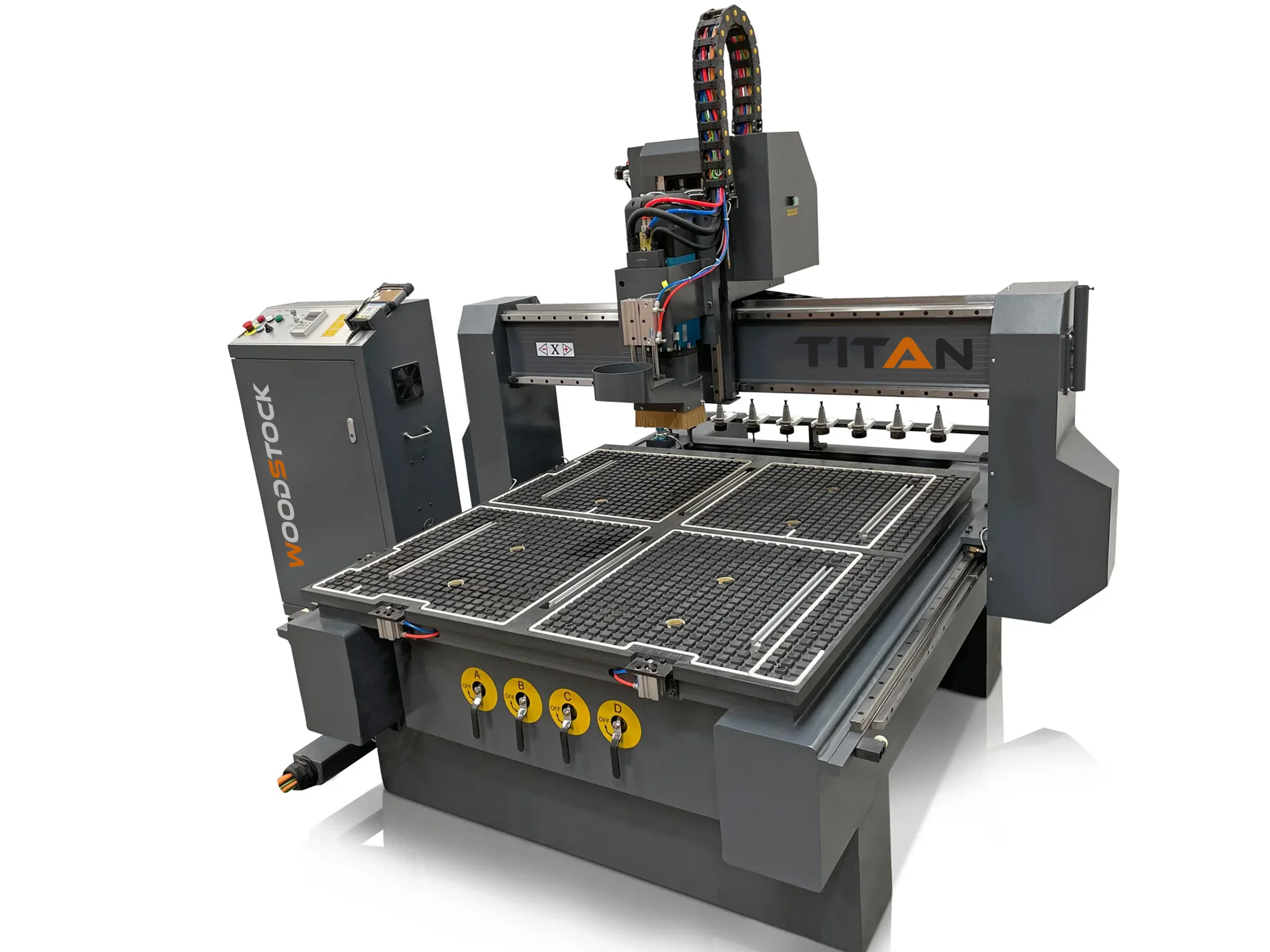

Titan CNC Router
Routers

TITAN

Pro Series

Heavy-duty CNC router for higher throughput and demanding production

Titan CNC Router Designed for precision, speed, and flexibility, this machine is ideal for workshops looking to increase production capacity. Built with a rigid structure and high-quality components, it delivers consistent performance across demanding applications. Powerful. Flexible. Built for growth.

Ball-screw on all axes

Technical Specifications +
X-Y-Z Working Area
1200 × 1200 × 250 mm
Machine Size
1800 × 1900 × 1700 mm
Repositioning Resolution
0.05 mm
X-Y Movement
Rack & Pinion
Z Movement
Ball Screw
Max Speed
10 m/min
Max Cutting Speed
8 m/min
Spindle
4.5 kW, 400V
Spindle Speed
24,000 rpm
Inverter Power
4.5 kW
Drive Motors
Stepper
Working Voltage
400V, 3 Phase, 50 Hz
Command Code
G Code
Computer Interface
USB 2.0
Collet Size
ER25 (2–12.7 mm)
Pop-up Pins
4 pcs
Weight
900 kg
Controller
B5X
✔ Built to order
✔ Direct factory pricing
✔ Support included

Customize Your Machine

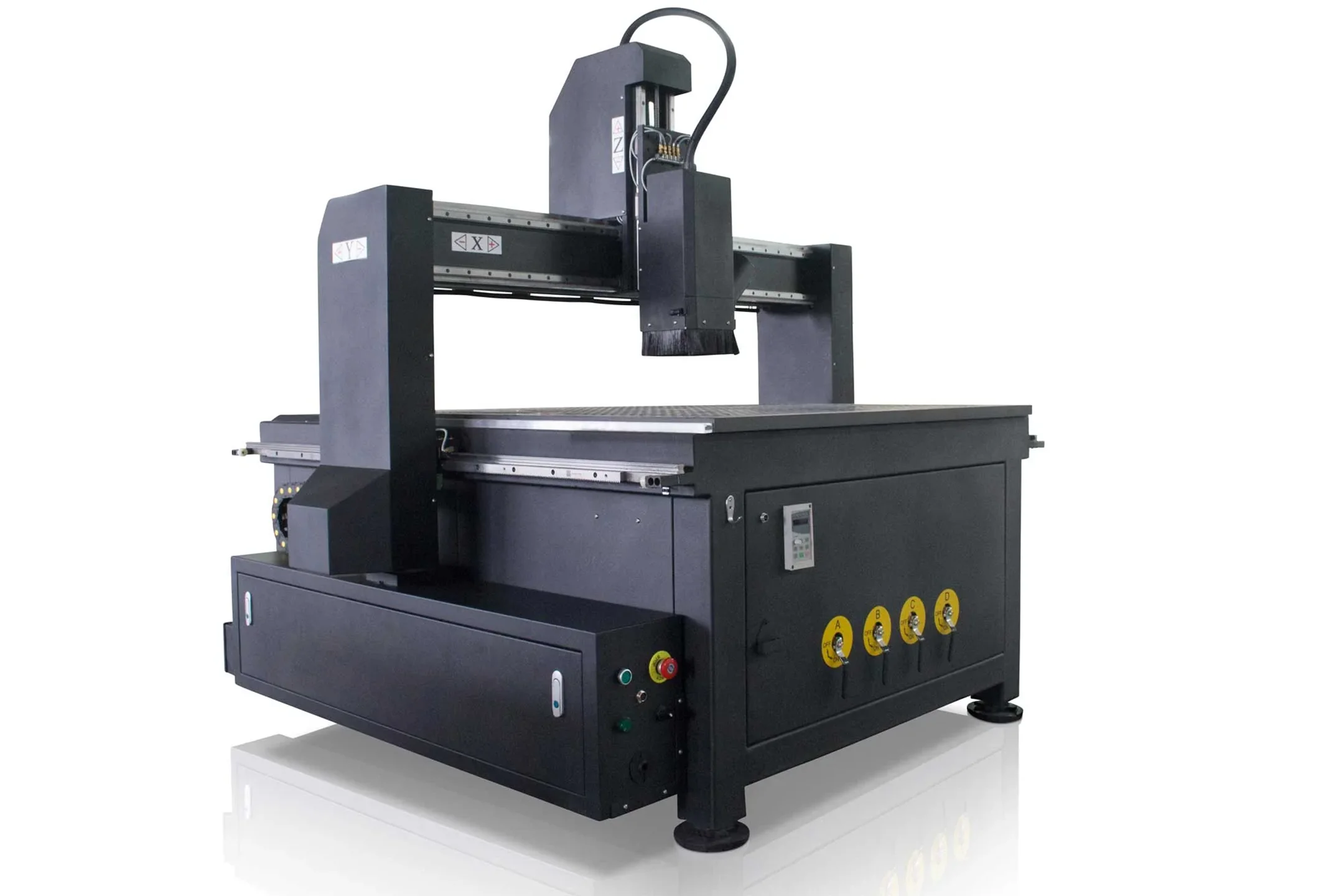

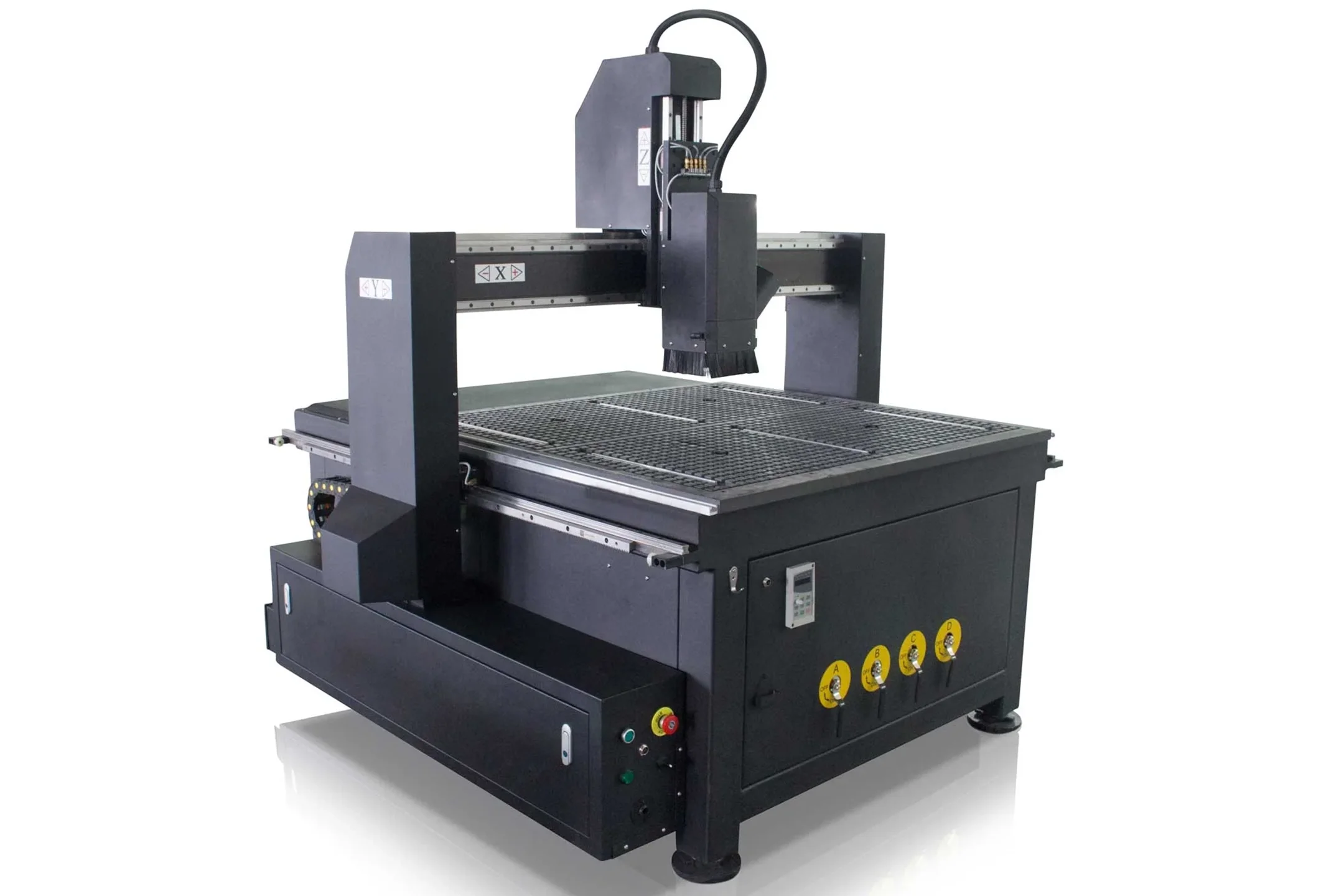

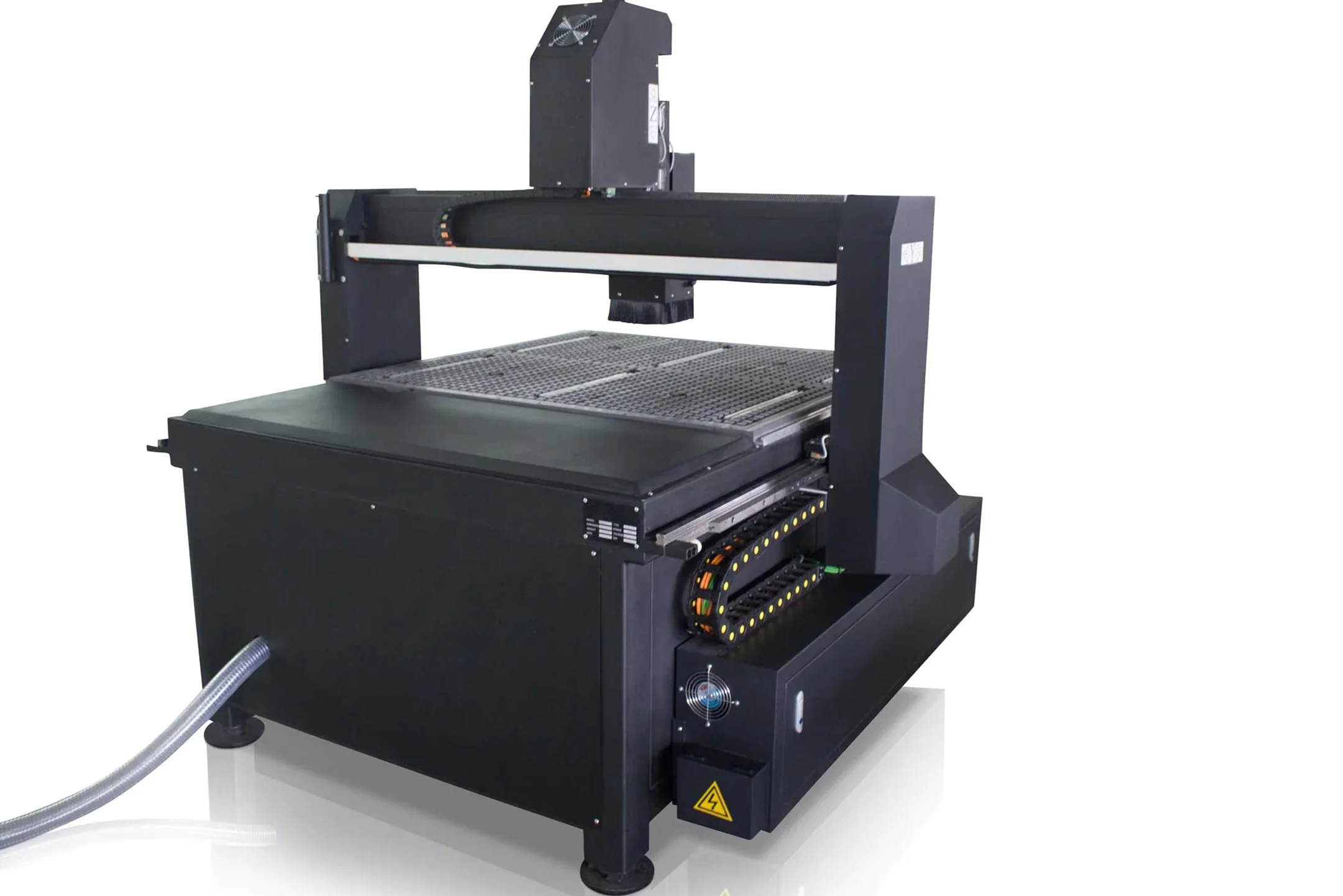

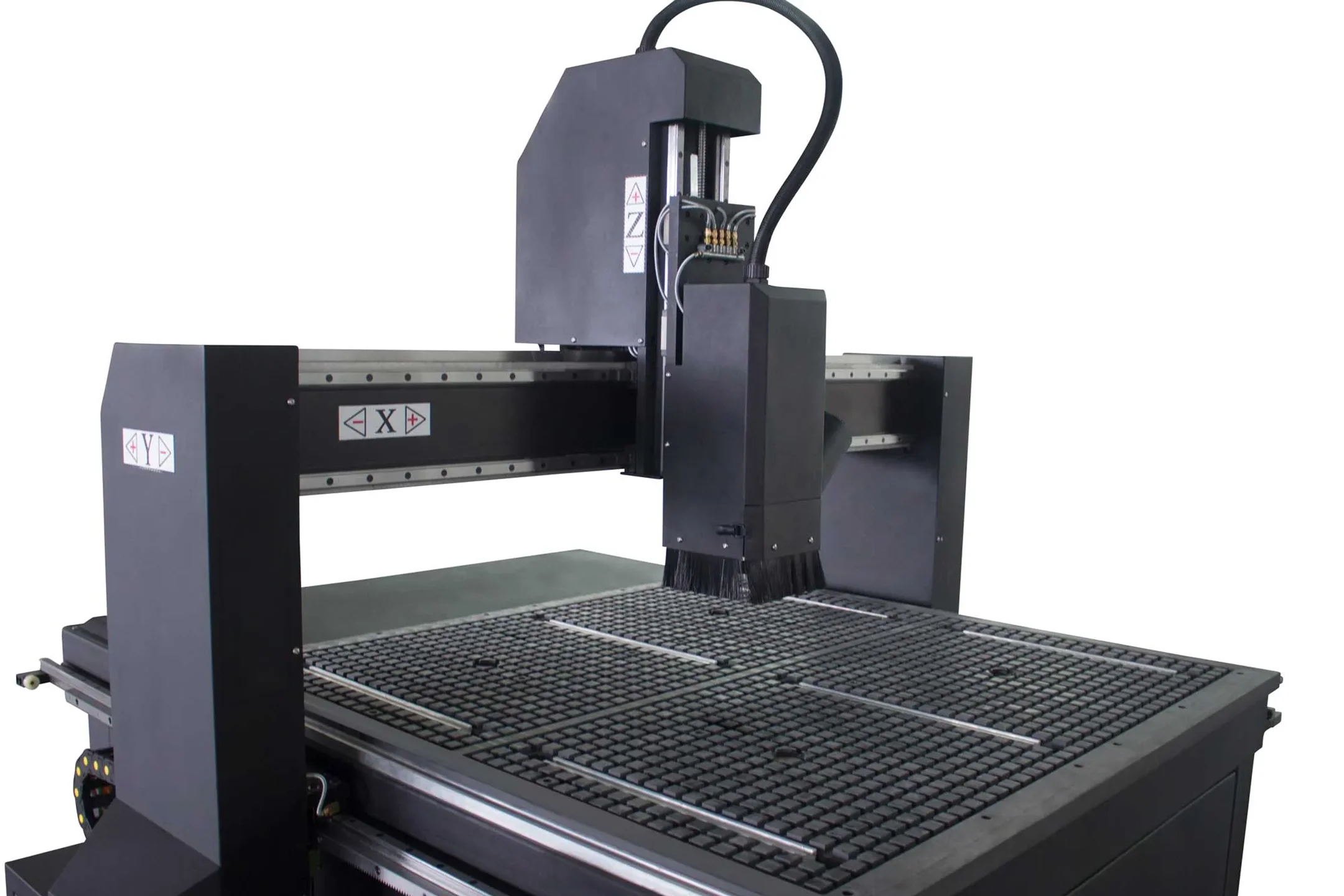

Einstein Pro X CNC
Routers

Einstein Pro X

Compact Series

Compact precision router for smaller workshops and entry production

Einstein Pro X CNC Router A compact yet capable machine built for precision work in smaller workshops. Easy to use, reliable, and efficient — perfect for entry-level production without compromising quality. Compact. Capable. Efficient.

Ball-screw on all axes

Technical Specifications +
X-Y-Z Working Area
1200 × 1200 × 200 mm
Machine Size
1800 × 1900 × 1700 mm
Repositioning Resolution
0.05 mm
X-Y Movement
Rack & Pinion
Z Movement
Ball Screw
Max Speed
10 m/min
Max Cutting Speed
8 m/min
Spindle
3 kW, 415V
Spindle Speed
24,000 rpm
Inverter Power
3.7 kW
Drive Motors
Stepper
Working Voltage
415V, 3 Phase, 50 Hz
Command Code
G Code
Computer Interface
USB 2.0
Collet Size
ER25 (2–16 mm)
Controller
DSP B11
Weight
400 kg
✔ Built to order
✔ Direct factory pricing
✔ Support included

Customize Your Machine

CNC Router
Routers

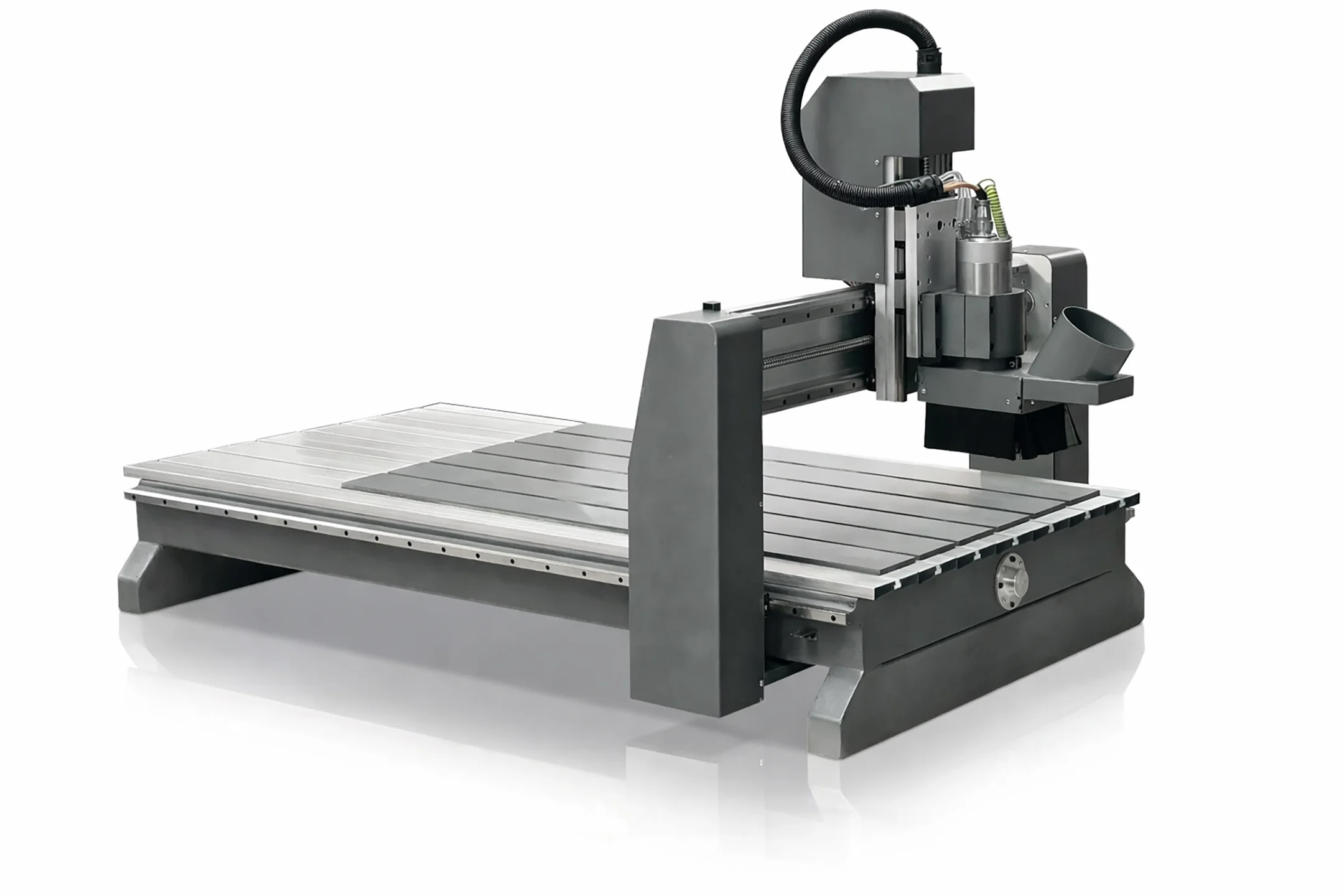

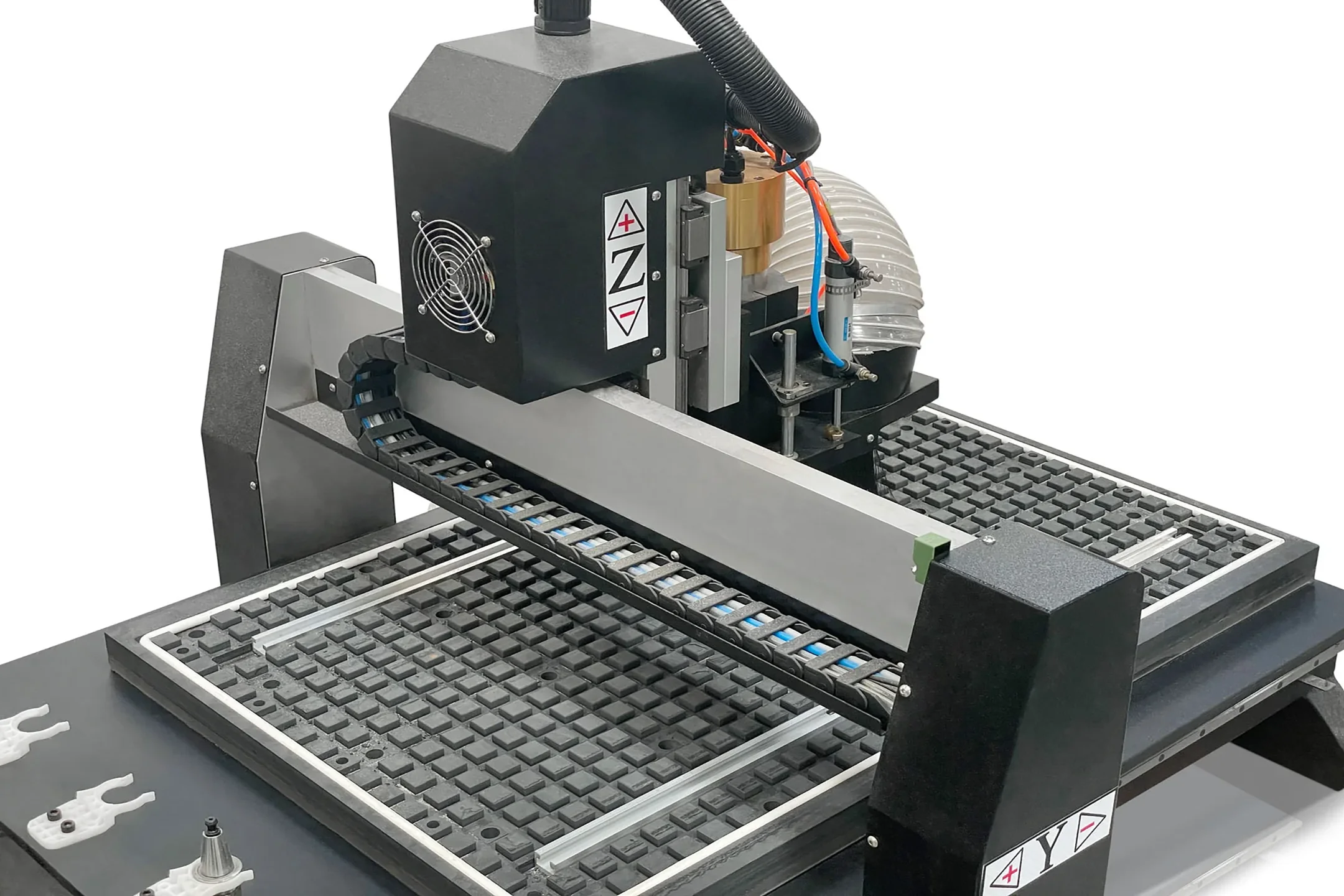

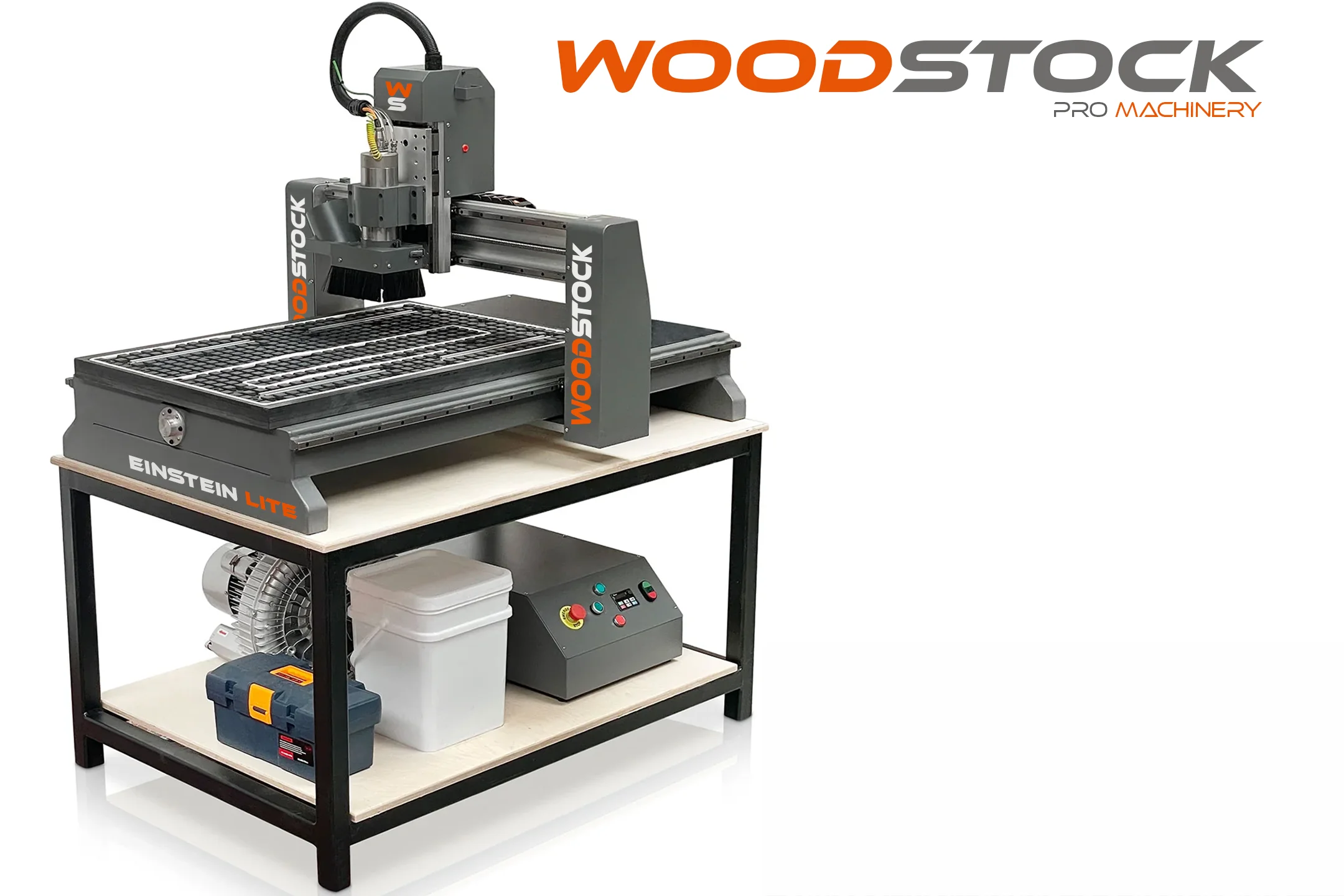

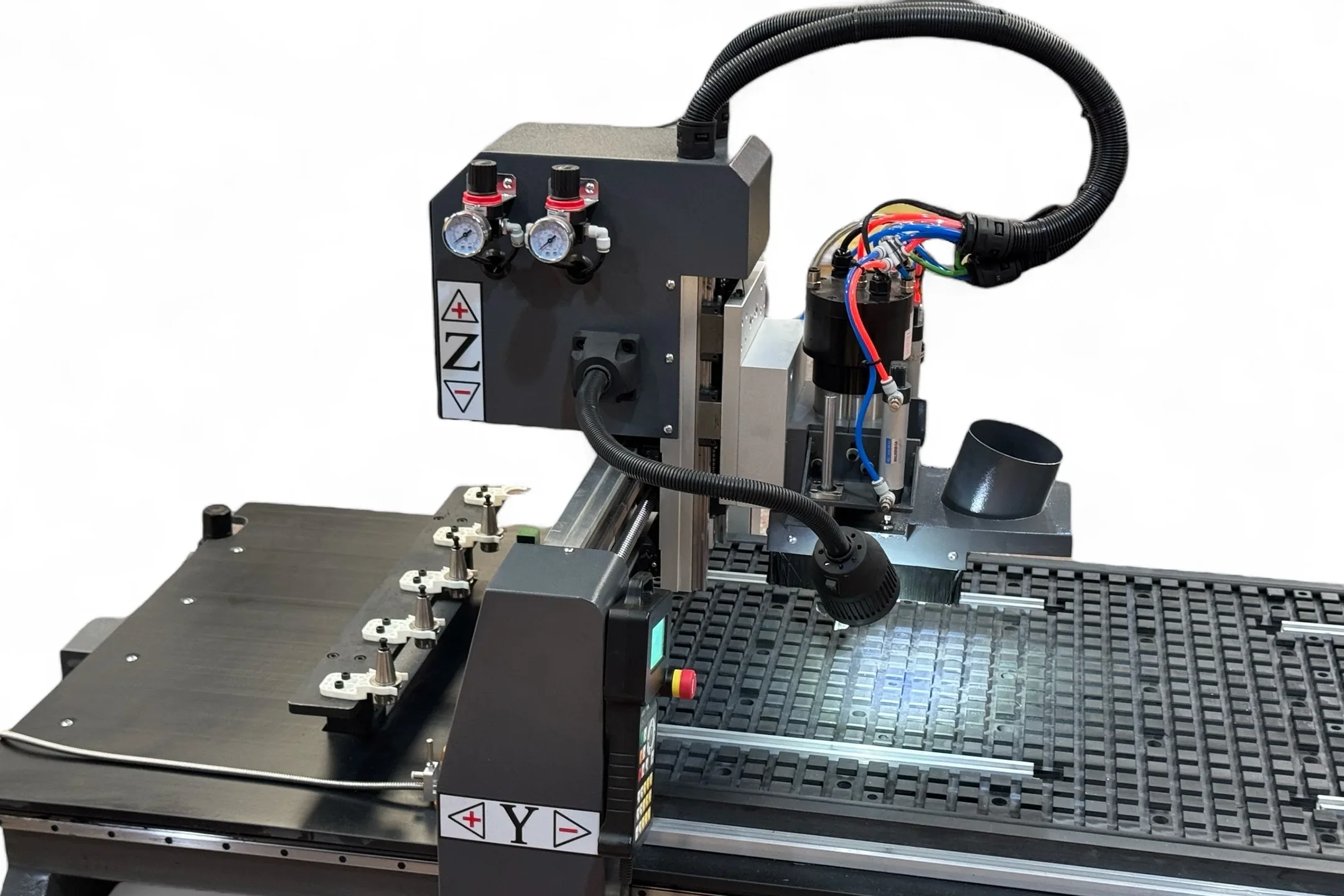

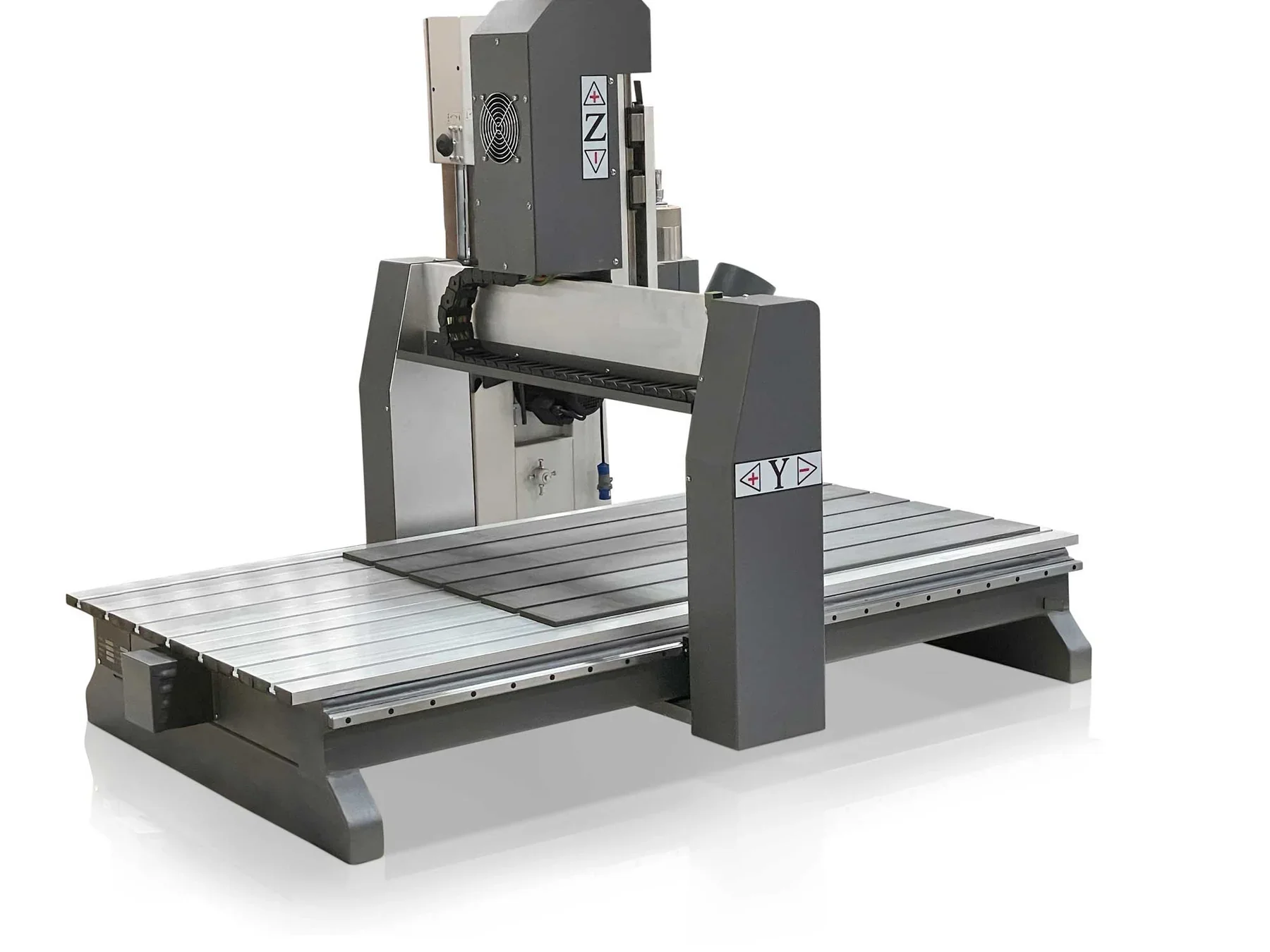

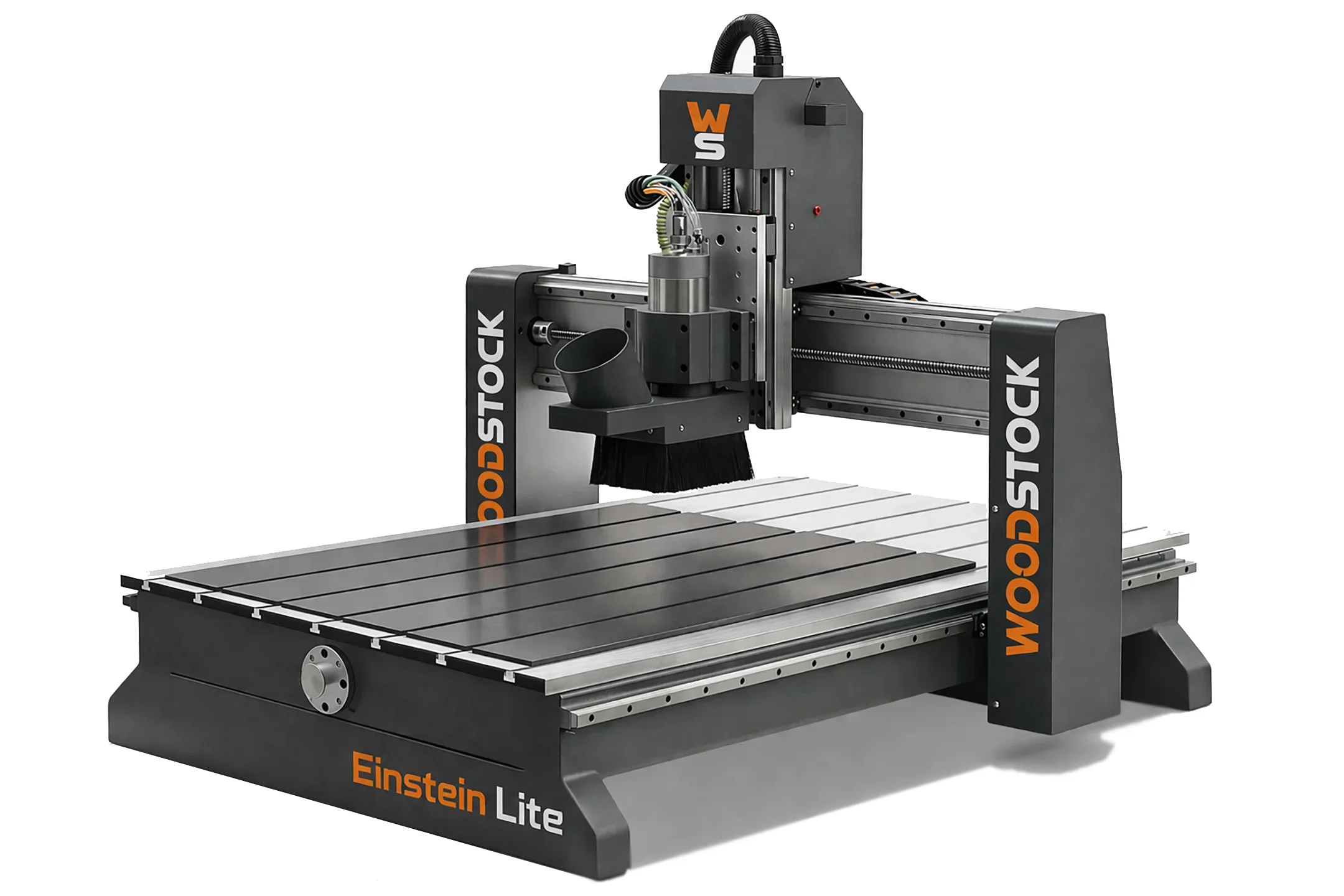

Einstein Lite

Tabletop Series

Compact tabletop CNC for makers, schools, and small-batch work

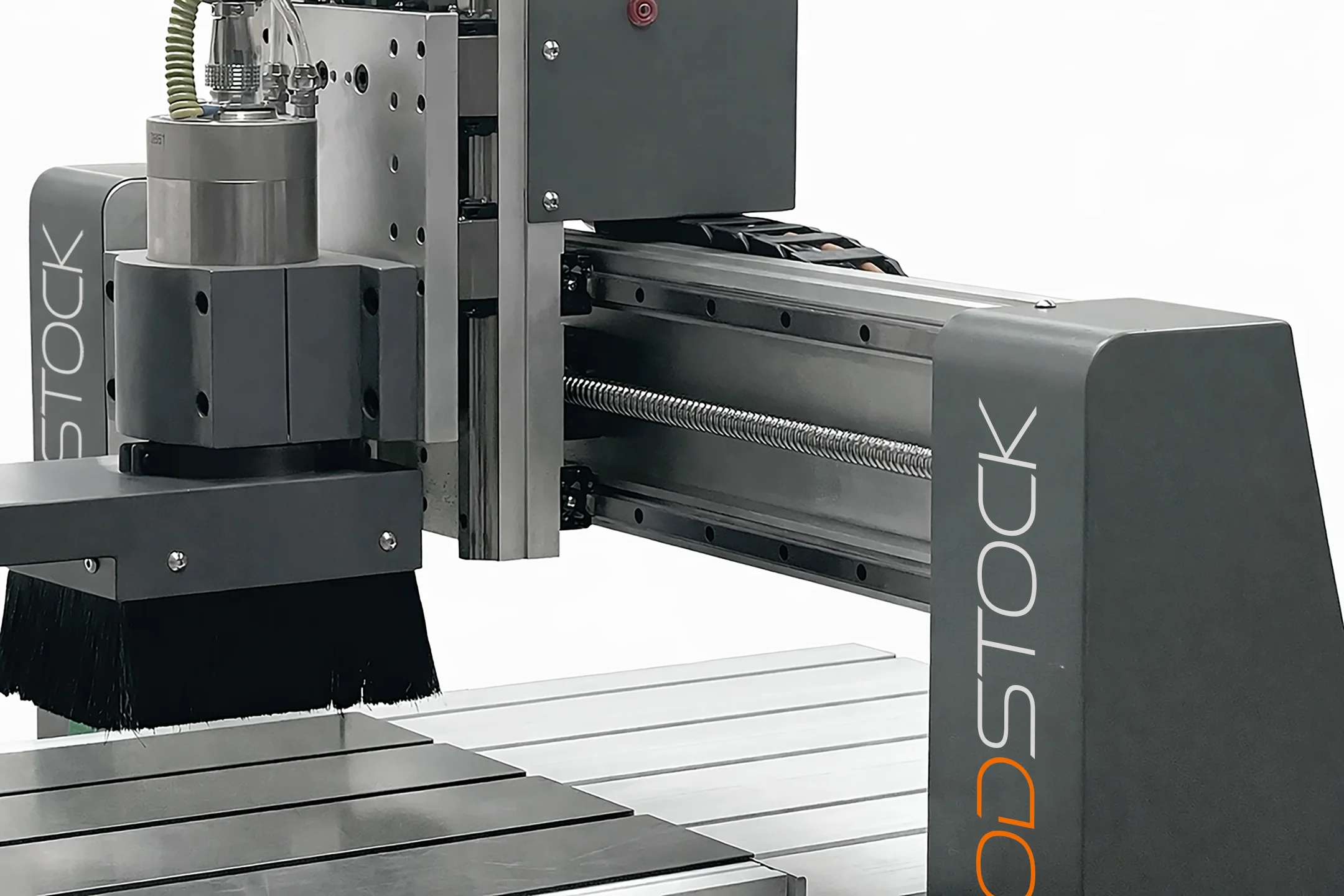

Einstein Lite CNC Router A professional CNC machine designed to fit any level — from enthusiasts to small-scale production environments. Don’t let its compact size fool you. Built on a rigid steel frame with precision linear guide rails and ball-screw drive on all axes, it delivers accuracy, stability, and performance you can rely on. Perfect for workshops that need serious capability in a smaller footprint, without compromising on quality. Compact. Precise. Built to perform.

Ball-screw on all axes

Technical Specifications +
Working Area
610 × 900 × 150 mm
Clamping Range
635 × 910 mm
Machine Dimensions
990 × 1420 × 860 mm
Spindle Power
2.2 kW
Spindle Speed
24,000 rpm
Inverter
2.2 kW
Movement Speed
8 m/min
Max Cutting Speed
6 m/min
Accuracy
±0.05 mm
Resolution
0.00375
Backlash
0.1
Drive System
German ball-screw (X/Y/Z)
Motors
Stepper (57BH 300D 26E)
Power
230V / 1 phase / 16A
Control System
DSP A11
Command Code
G-code
Interface
USB
Collet Size
ER20 (2–12.7 mm)
Machine Weight
200 kg
Packing Size
1500 × 1090 × 1150 mm
✔ Built to order
✔ Direct factory pricing
✔ Support included

Customize Your Machine

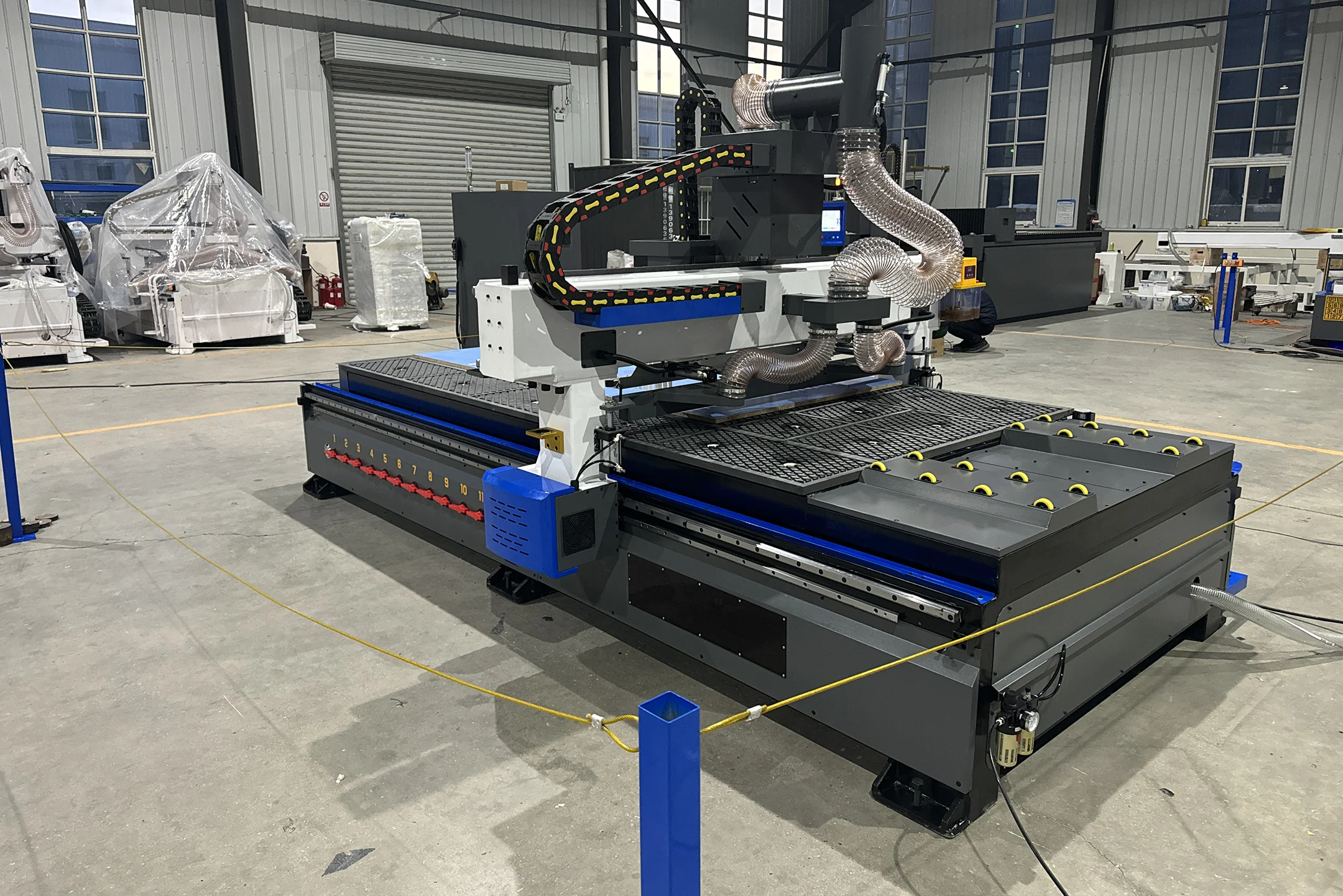

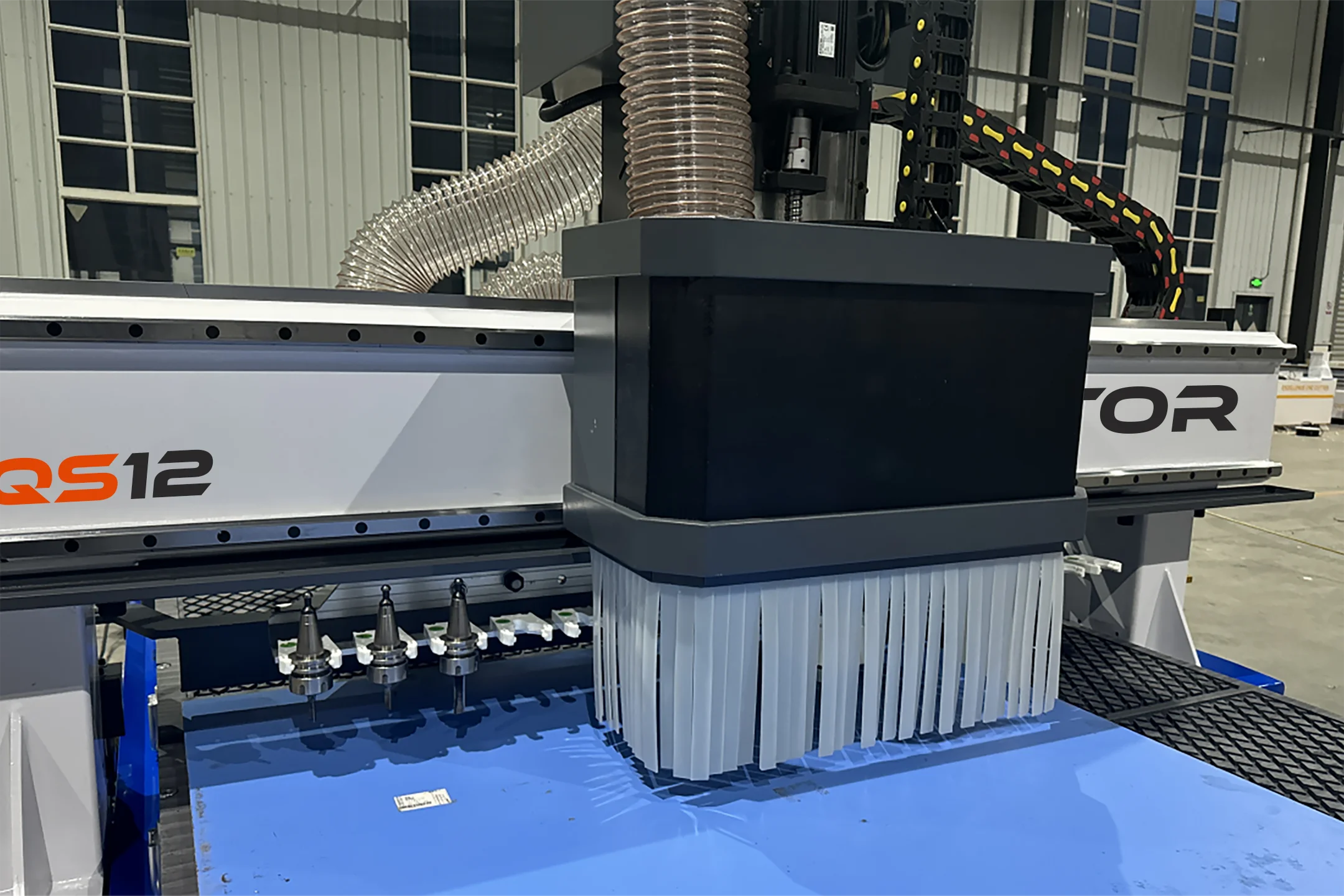

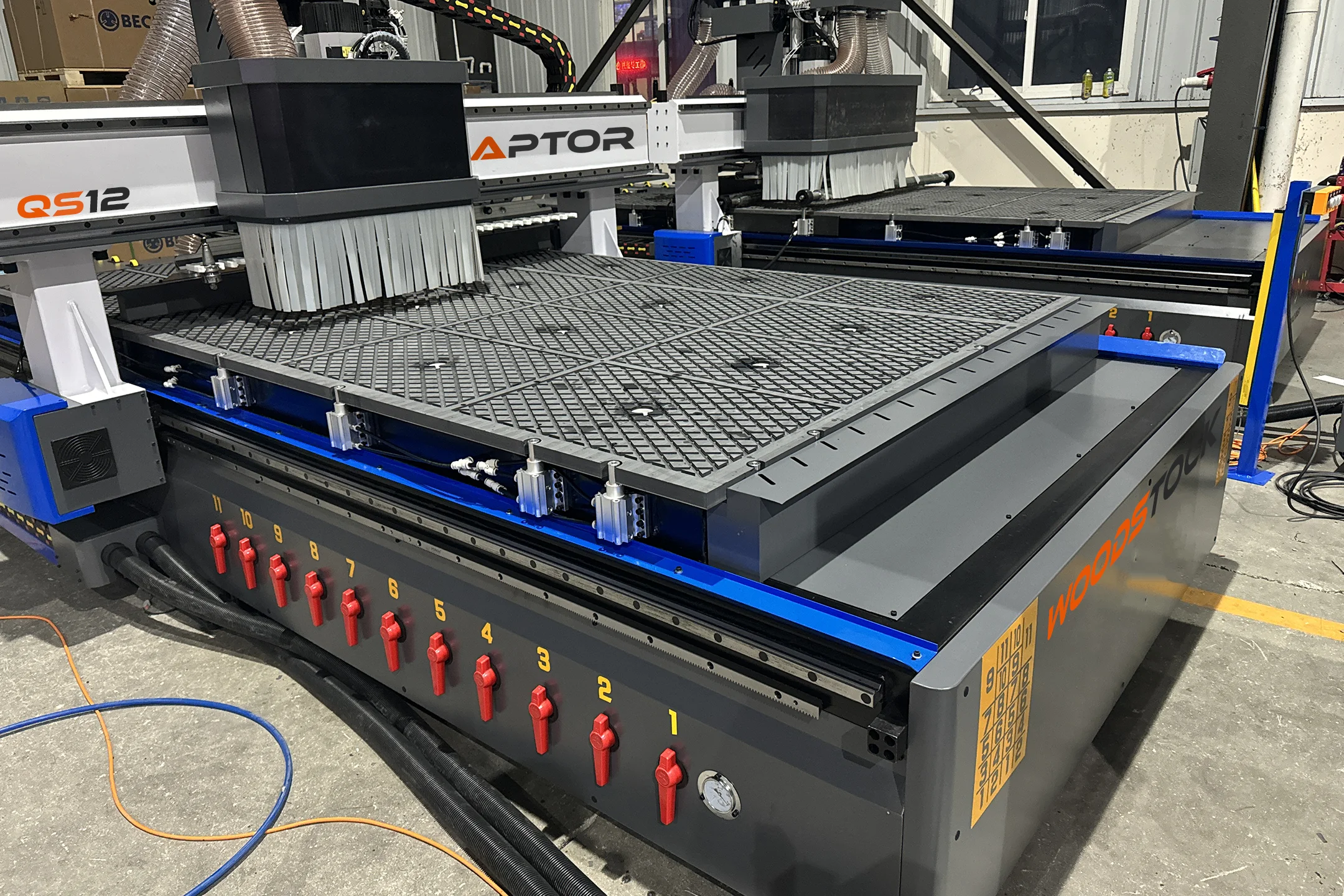

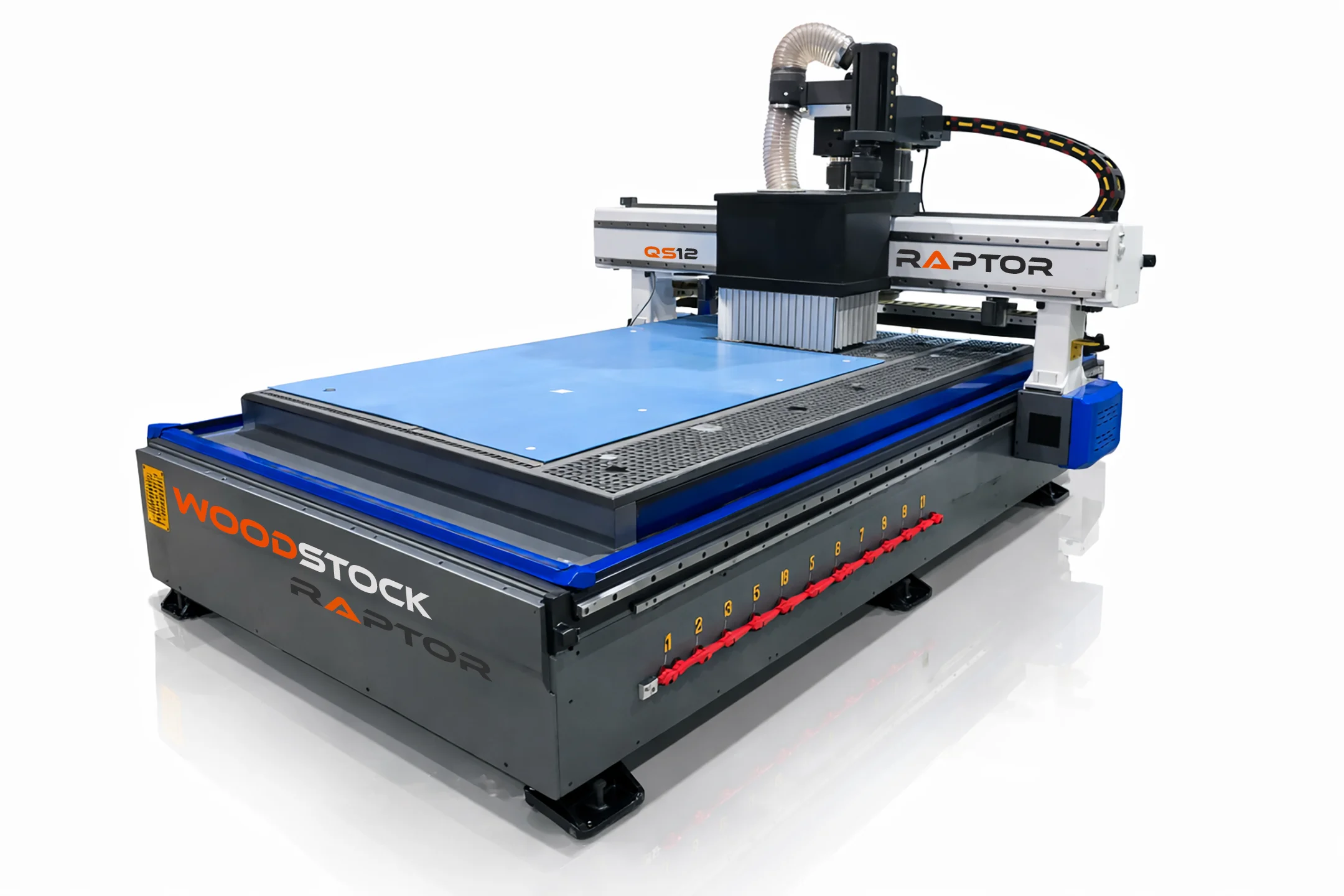

RAPTOR ATC
Routers

RAPTOR ATC

Raptor Series

ATC production router for multi-tool workflows and faster output

RAPTOR ATC CNC Router Built for high-performance production, the Raptor ATC combines speed, power, and reliability in a machine designed to grow with your business. Equipped with a rigid heavy-duty steel frame, precision linear guide rails, and a high-speed helical rack-and-pinion system, it delivers strong cutting performance with consistent accuracy. The integrated Automatic Tool Changer (ATC) enables seamless multi-tool workflows, increasing efficiency and reducing manual work. Suitable for both demanding workshops and expanding businesses looking to take the next step in production. Powerful. Efficient. Built to perform.

Ball-screw on all axes

Technical Specifications +
Table size
1300×2500×150mm
Liner guideway rails
Taiwan
Controller
B5X
Transmission XY
Helical rack pinion
Rack pinion
1.5M
Spindle motor
9kW ISO30 ATC
Spindle motor RPM
1000–24000 RPM

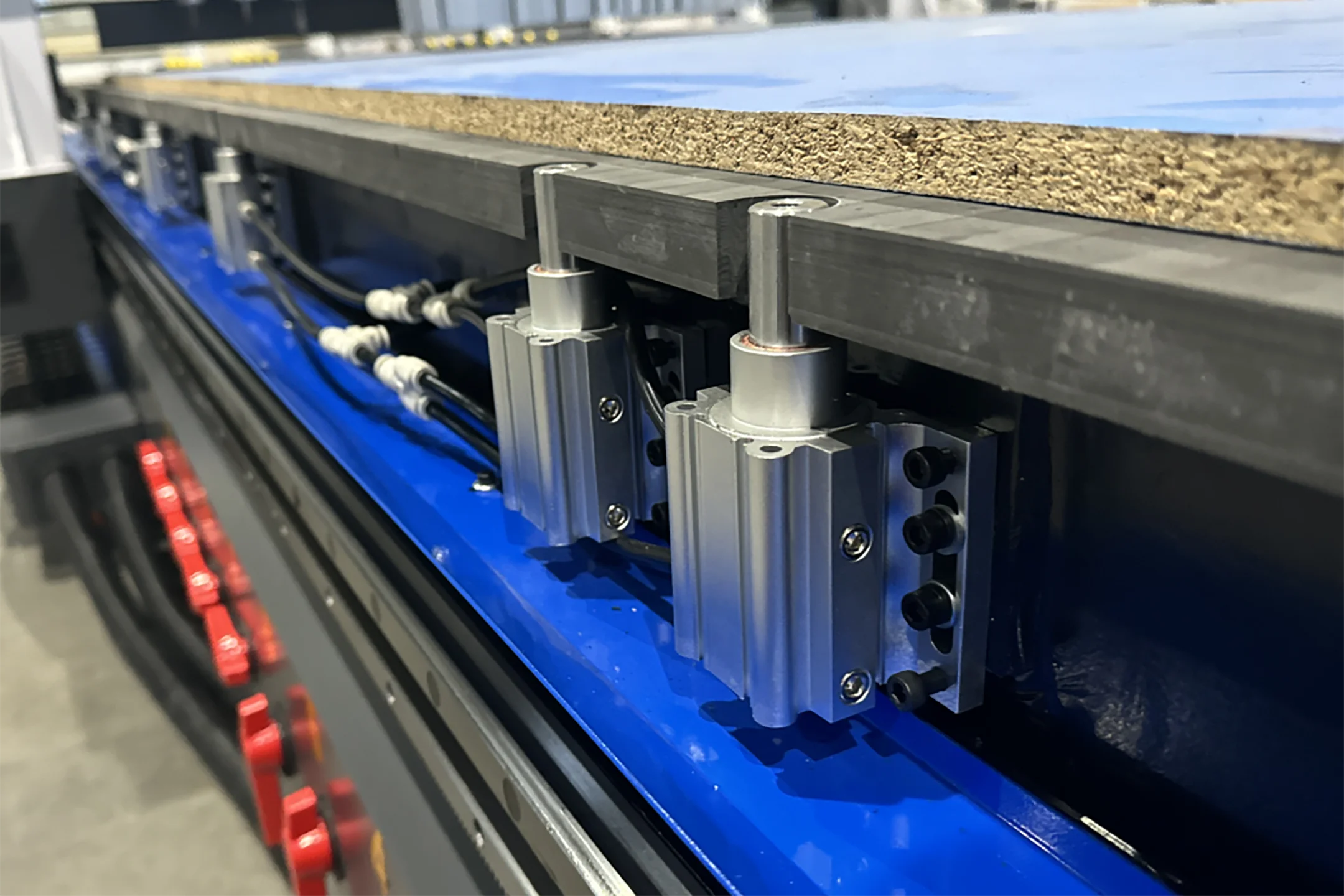

Vacuum table
Yes
Vacuum Pump
7.5kW
Inverter
Delta Taiwan
Driver motor
Leadshine Servos
Reducer
Japanese Shimpo
Electric parts
Delixi
Dust cover
Yes
Independent control box
Yes
Rapid feed speed X/Y/Z
60/60/20 m/min
Voltage
380V 50HZ
Weight
~2100 KG
✔ Built to order
✔ Direct factory pricing
✔ Support included

Customize Your Machine

×
