Laser Machines

Industrial laser systems for non-metals, signage, and metal cutting

Choose Your Laser Type

CO2 and Fiber in one clean page

Keep both laser families on one page for now. Split them into clear sections so visitors can compare applications quickly and you can expand each family later without restructuring.

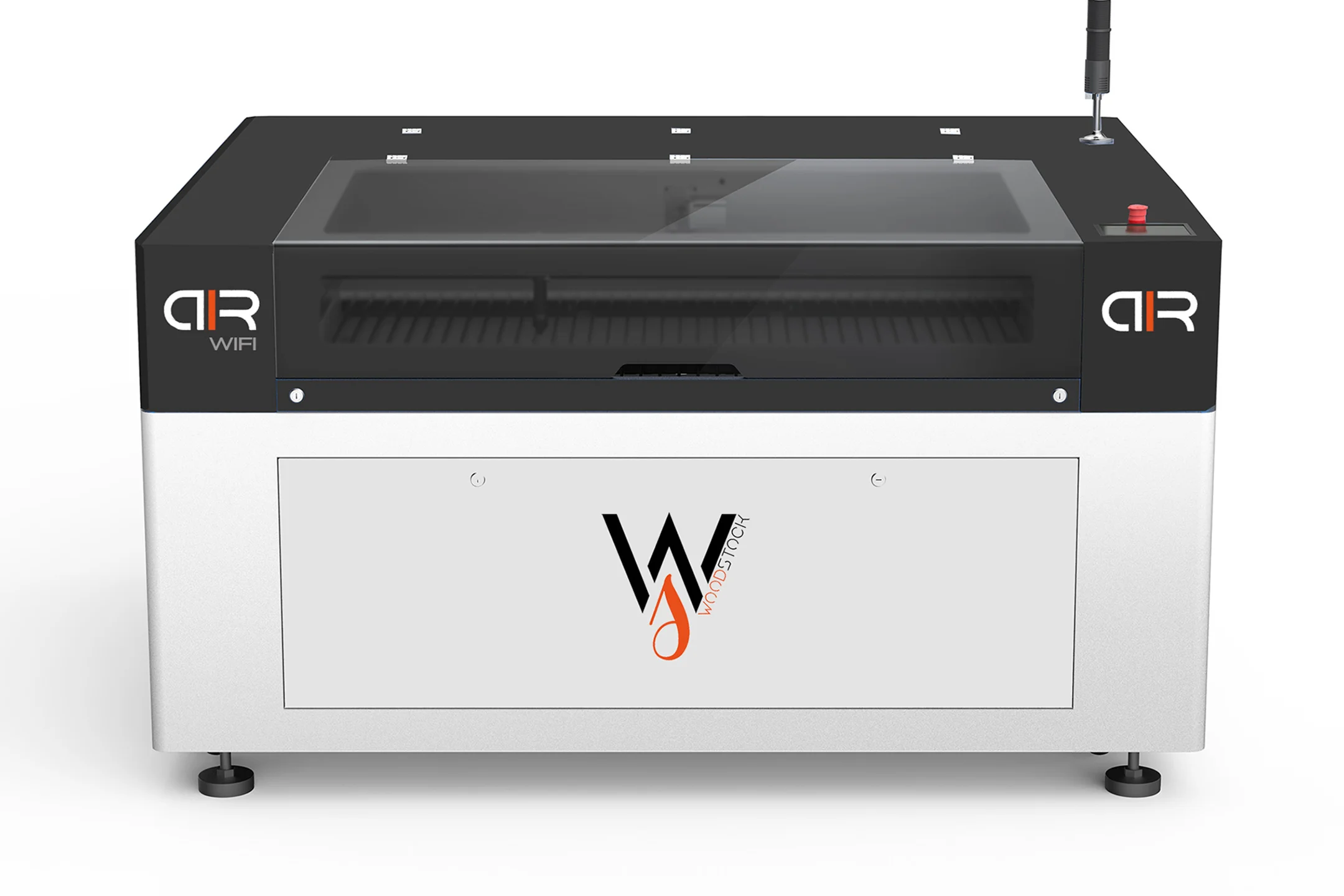

WS1390 CO2 laser machine
WS1390 CO2 thumbnail
CO2

WS1390 CO2

CO2 Laser System

Professional CO2 laser for acrylic, wood, leather, packaging, and signage production

START ORDER EMAIL US WHATSAPP TEAMS
From On request

A fast and flexible CO2 platform built for sign makers, fabrication shops, schools, and production environments that need clean cutting and engraving across a wide mix of non-metal materials.

Technical Specifications +
Working Area
1400*900mm
Z Travel
200mm
Max Material Load
120KG
Glass Laser Power
90W/100W/130W
RF Laser Power
30W/60W
Max Speed (Super)
4200mm/s
Max Speed (Elite)
1200mm/s
Acceleration (Super)
8G
Acceleration (Elite)
5G
Minimum Character Size
1.0×1.0mm
Positioning Accuracy
<=0.1mm
Working Table
Honeycomb + Blade table
Cooling System
Glass: Built-in 5200 chiller / RF: Air-cooled
Exhaust System
Built-in 500W (Auto Start-stop)
Air Assist
Built-in compressor 750W with 40L air tank (Auto Start-stop)
Camera
100° 8 megapixel (3840×2160)
Memory
1G
Control Software
Rdworks/Lightburn (Optional)
Compatible Software
CorelDraw/Illustrator/AutoCAD
Machine Dimensions
1900*1410*1125
Net Weight
560KG
Gross Weight
683KG

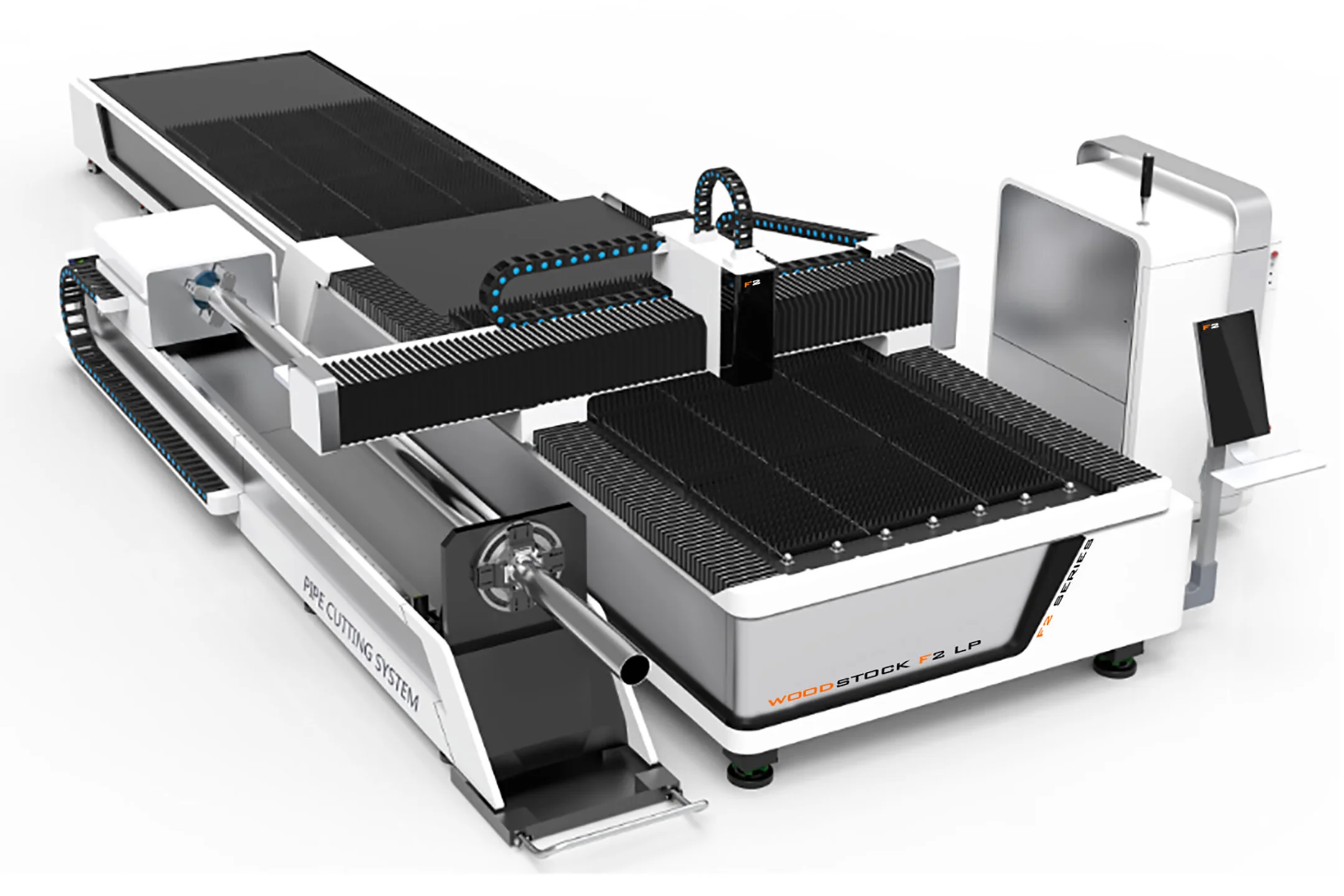

WSF2 Fiber laser machine
WSF2 Fiber thumbnail
Fiber

WSF2 Series LP

Fiber Laser + Tube Cutting

High-productivity fiber laser for sheet metal and tube cutting with stable precision

START ORDER EMAIL US WHATSAPP TEAMS
From On request

The F2 Series LP is engineered for higher productivity without sacrificing stability or precision. Extended side tube support allows the machine to cut metal tubes up to twice the standard length in addition to normal sheet-laser work. Water or forced-air cooling, dust protection, and automatic lubrication help ensure long service life and consistent operation. A vibration-resistant chassis and built-in Wi-Fi make diagnostics, access, and maintenance easier. The future of fiber is here.

Technical Specifications +
Working Area
1422 mm x 3023 mm
Effective Tube Cutting Length
3000/6000 mm
Laser Power
500w/700w/800w/1000w/1500w/2000w/2500w/3000w
Max. Movement Speed
100m/min
Max. Cutting Speed
35m/min
Positioning Accuracy
0.03mm
Repositioning Accuracy
0.02mm
Min. Line Width
0.1mm

Recommendation: keep both families on one page now, then split later only if the number of machines grows enough to make scanning harder.

×
